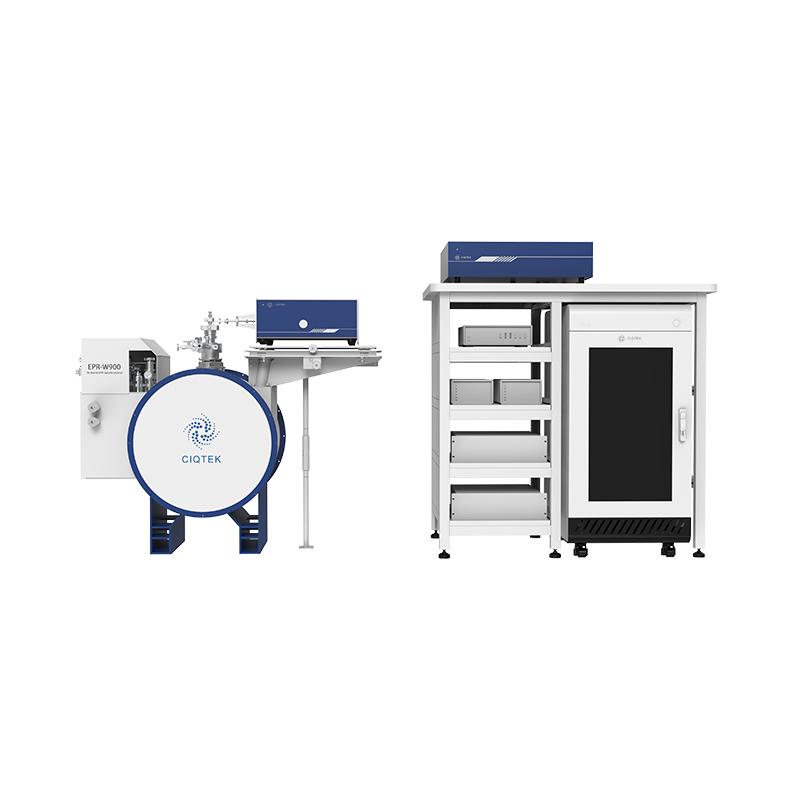

W-Band High-frequency EPR Spectrometer | EPR-W900 suppliers,W-Band High-frequency EPR Spectrometer | EPR-W900 manufacturers,W-Band High-frequency EPR Spectrometer

High Resolution
The g-value resolution is dependent on the microwave frequency. W-band EPR offers higher g-value resolution, which is beneficial for analyzing anisotropic samples. For disordered samples such as membrane proteins that are challenging to crystallize, W-band EPR provides enhanced orientation selectivity.
High Sensitivity
With the same sample volume, a high cavity-filling factor improves the detection of low-quantity samples. At the same g-value, a higher resonant magnetic field facilitates better spin polarization, resulting in higher sensitivity in low-temperature experiments.

High Frequency and High Field
Ideal for studying fast kinetic processes and for detecting samples with strong zero-field splitting. Enhances electron-nuclear double resonance experiments by improving the detection and resolution of nuclei with low gyromagnetic ratios.
Cryogen-free Superconducting Magnet
The split-pair superconducting magnet is specifically designed for high-frequency EPR. It employs a cryogen-free system to maintain superconducting temperatures without consuming liquid helium, ensuring stable operation and easy maintenance.

EPR in Chemistry
Explore reaction mechanisms in organic, electrochemical, and coordination chemistry, monitor free radical intermediates, and support drug discovery, and structural analysis of coordination compounds, and organic syntheses.
EPR in Life Sciences
Advanced oxidation processes, photocatalysis, air pollution monitoring, wastewater treatment, soil remediation, heavy metal pollution tracking, environmental persistent free radicals (EPFR), etc.
EPR in Materials Science
Crystal defects, magnetic materials, semiconductors, battery materials, optical fiber defects, polymer materials, etc.
EPR in Food Science
Food irradiation detection and identification, beer flavor shelf life, edible oil rancidity detection, etc.
EPR in Biomedicine
Characterization of antioxidant activity, characterization of metalloenzymes, spin labeling of biomacromolecules, etc.
EPR in Medical Research
Occupational disease protection research, nuclear radiation emergency medical treatment, alanine dosimetry, cancer radiotherapy irradiation research, etc.
EPR in Industry
Coating aging research, diamond defect identification, tobacco filter efficiency, petrochemical quality control, residual inhibitor detection, cosmetic free radical protection factor, etc.
EPR in Geoarchaeology
Quaternary dating (ranging from thousands to millions of years) is achieved through EPR analysis of fossils, rocks, corals, quartz, and soils.
EPR in Biological Structure Analysis
Electron-electron double resonance is vital for determining biomolecular structures. Spin-labeling proteins, RNA, etc., and using EPR to measure their interactions yields non-destructive distance data (1.7–8 nm) between labels.

W-band Continuous-wave EPR Experiment

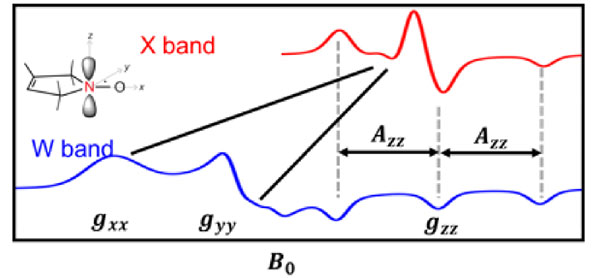

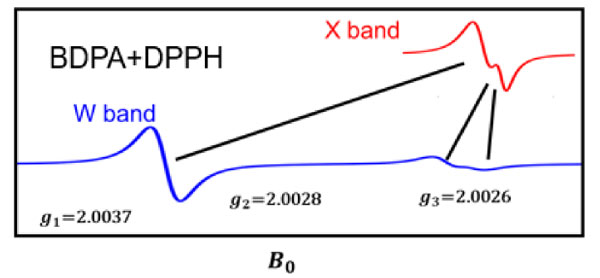

W-band EPR analysis results with higher g-factor resolution

W-band Pulsed EPR Experiment

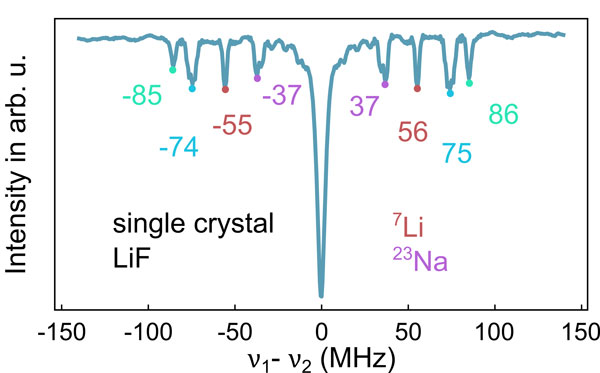

EDNMR spectra of LiF single-crystal

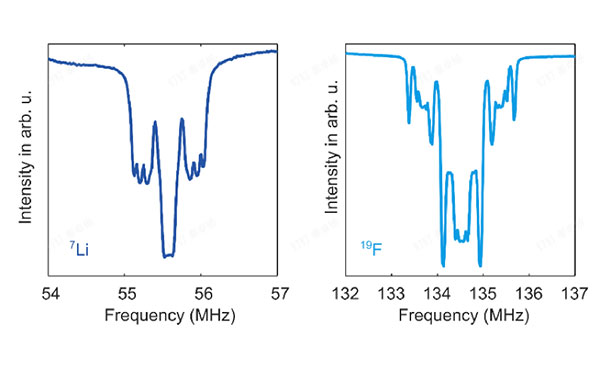

ENDOR spectra of LiF single-crystal

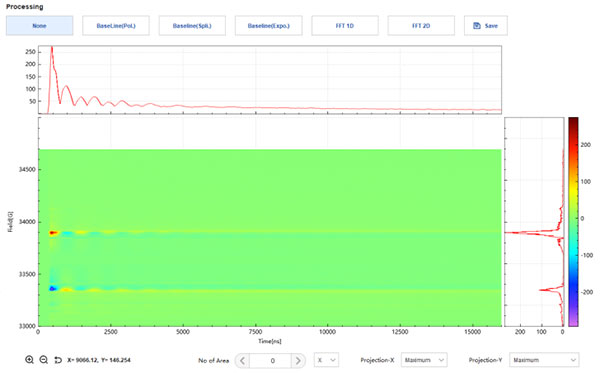

Transient EPR spectra of pentaphenyl crystal

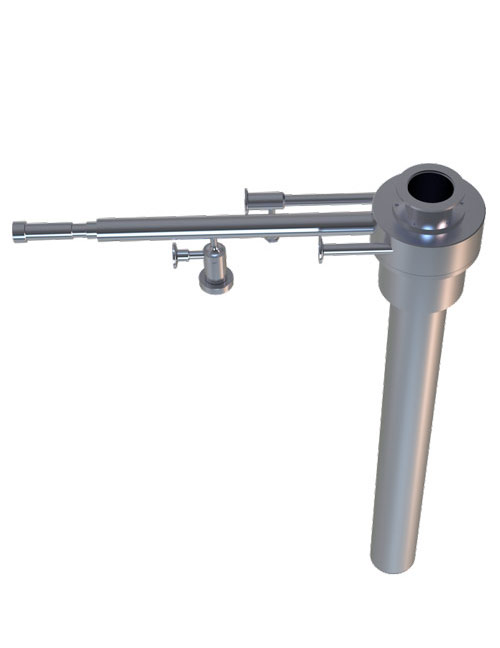

Liquid Nitrogen / Liquid Helium Variable Temperature Cryostat

Low-temperature experiments are supported, with a range of temperature control:
From 4.4 K (negative pressure) to 300 K (using liquid helium as the cryogen)
From 80 K to 300 K (using liquid nitrogen as the cryogen)

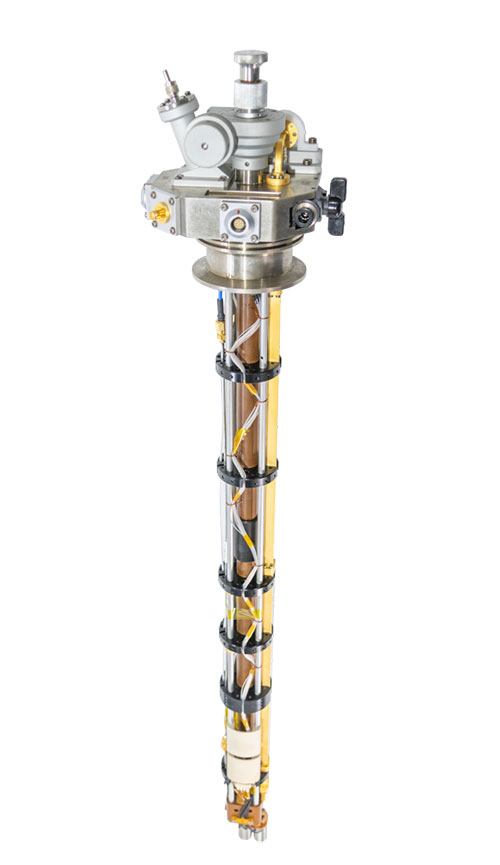

W-band Electron Nuclear Double Resonance (ENDOR) Probe

Combined with the ENDOR probe and the RF amplifier, it supports pulsed ENDOR experiments.

W-band Time-Resolved EPR System

Combined with a pulsed laser, it supports time-resolved EPR experiments.

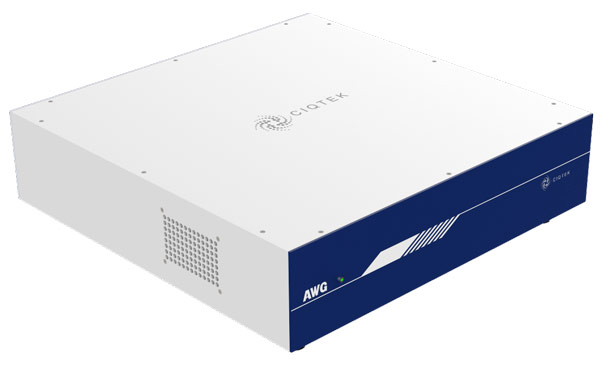

Arbitrary Waveform Generator

When integrated with an arbitrary waveform generator, it enables the output of microwave pulses with any desired waveform. The pulse amplitude, phase, frequency, and envelope can be modified for flexible, customizable complex pulse EPR experiments.

Artificial Intelligence (AI) + EPR System

AI EPR spectral analysis, applicable to 90% of samples

Before
After

Automatic linking of literature databases

Publish in Nature! CIQTEK Pulse EPR Boosts The Discovers of New Method to Enhance Bit Performance
The research team at Westlake University used CIQTEK pulsed EPR Spectroscopy X-band EPR100 and W-band EPR-W900 to characterize two molecular qubit framework materials containing semi-quinone radicals.

>> Read More

CIQTEK Electron Paramagnetic Resonance (EPR) Spectroscopy Collections

CIQTEK Science Sparks: EPR + AI System

Pulse Signal Acquisition Modes	Transient acquisition, single-point acquisition, and integration testing
Number of Pulse Channels	12 channels (+X, -X, +Y, -Y; 4 control channels; 4 expansion channels), supporting phase cycling
Pulse Time Resolution	0.05 ns
Number of Pulses	20,000 per channel, with support for unlimited loop playback
Solid-State Power Amplifier Output Power	2 W
