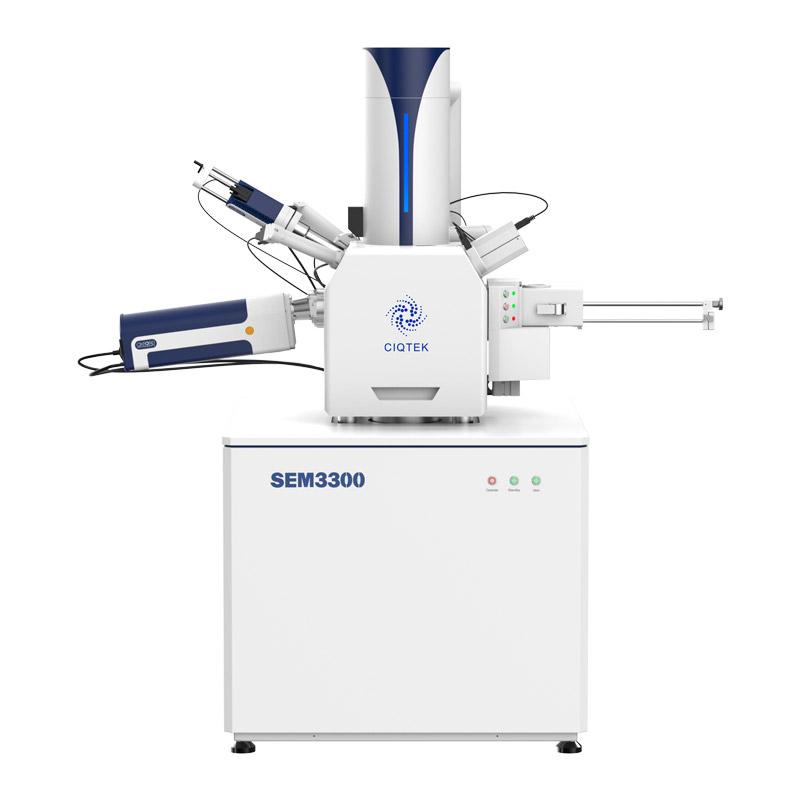

Tungsten Filament SEM | SEM3300

Next-generation Tungsten Filament Scanning Electron Microscope



The CIQTEK SEM3300 scanning electron microscope (SEM) incorporates technologies such as "Super-Tunnel" electron optics, inlens electron detectors, and electrostatic & electromagnetic compound objective lens. By applying these technologies into the tungsten filament microscope, the long-standing resolution limit of such SEM is surpassed, enabling the tungsten filament SEM to perform low-voltage analysis tasks previously only achievable with field emission SEMs.

Inquire Now

▶ In-lens Electron Detector

  • SEM In-lens Electron Detector
  • SEM3300 analysis images

    lmages of lithium battery diaphragm taken at 1 kV with a magnification of 20,000 times on film, images taken with SEM3300

  •



▶ Auto Functions for Efficient Working

lmproved Automatic Brightness & Contrast, Automatic Focus, and Automatic Astigmatism Correction Functions. Imaging by a single click!

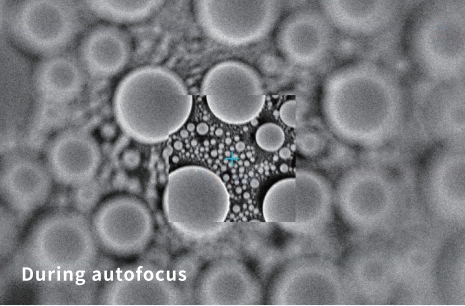

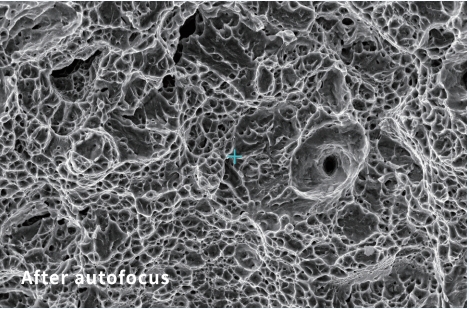

>> Automatic Focus

  • during autofocus
  • after autofocus

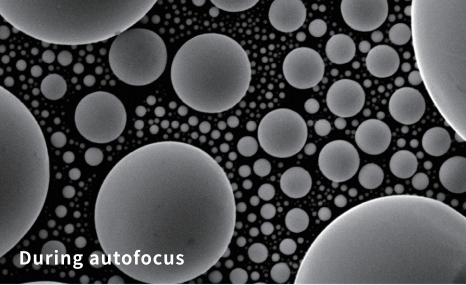

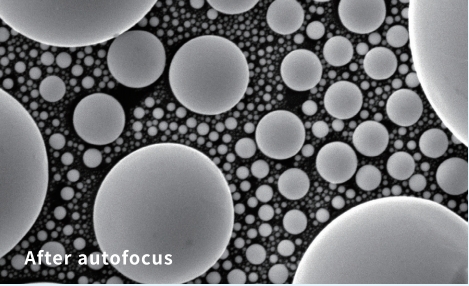

>> Automatic Astigmatism Correction

  • during autofocus
  • after autofocus



>> Automatic Brightness & Contrast

  • during autofocus
  • after autofocus



>> AutoMap *optional

  • during autofocus

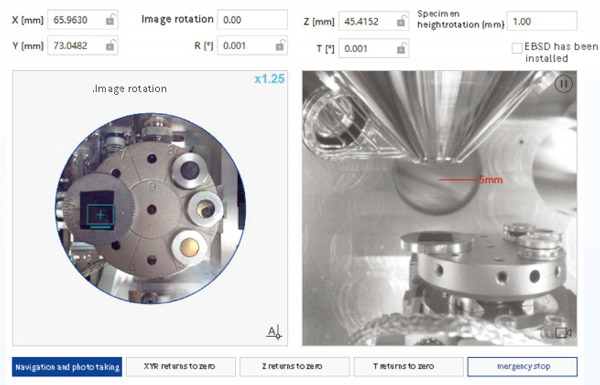

▶ Safer to Use

▶ Easy Filament Replacement

Pre-aligned replacement filament module ready to use.

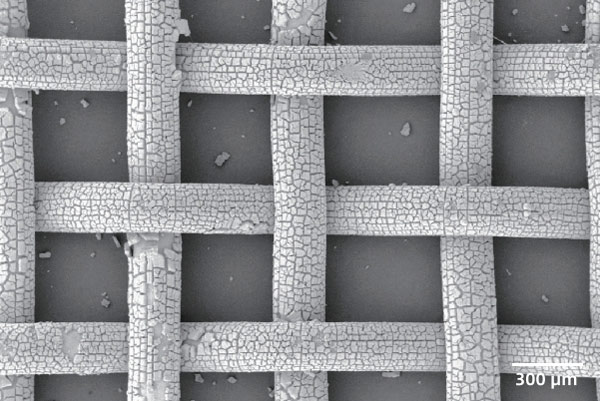

CIQTEK SEM Microscope SEM3300 Image Gallery

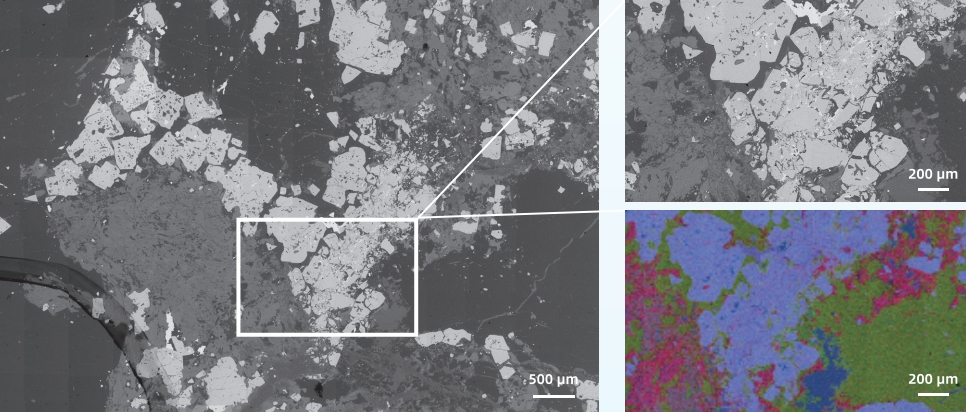

▶ Particle & Pore Analysis Software (Particle) *Optional

SEM Particle & Pore Analysis Software (Particle)

The CIQTEK SEM Microscope software employs various target detection and segmentation algorithms, suitable for different types of particle and pore samples. it enables quantitative analysis of particle and pore statistics and can be applied in fields such as materials science, geology, and environmental science.

▶ Image Post-processing Software

SEM Microscope Image Post-processing Software

Perform online or offline image post-processing on images captured by electron microscopes and integrates commonly used EM image processing functions, convenient measurement andannotation tools.

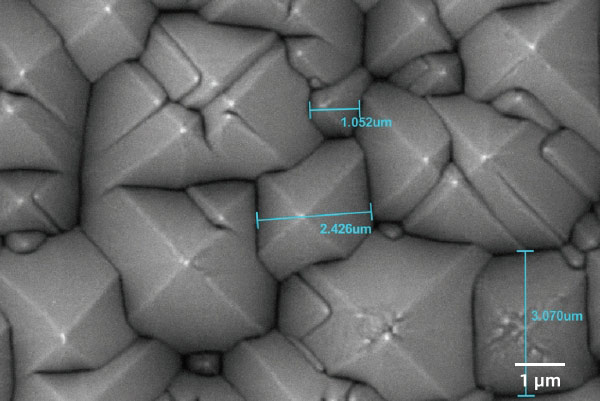

▶ Auto Measure *Optional

SEM Microscope software Auto Measure

Automatic recognition of line width edges, resulting in more accurate measurements and higher consistency. Support multiple edge detection modes, such as Line, Space, Pitch, etc. Compatible with multiple image formats and equipped with various commonly used image post-processing functions. The software is easy to use, efficient, and accurate.

▶ Software Development Kit (SDK) *Optional

SEM Microscope Software Development Kit (SDK)

Provide a set of interfaces for controlling the SEM microscope, including image acquisition, operating condition settings, power on/off, stage control, etc. Concise interface definitions allow for the rapid development of specific electron microscope operation scripts and software, enabling automated tracking of regions of interest, industrial automation data acquisition, image drift correction, and other functions. Can be used for software development in specialized areas such as diatom analysis, steel impurity inspection, cleanliness analysis, raw material control, etc.

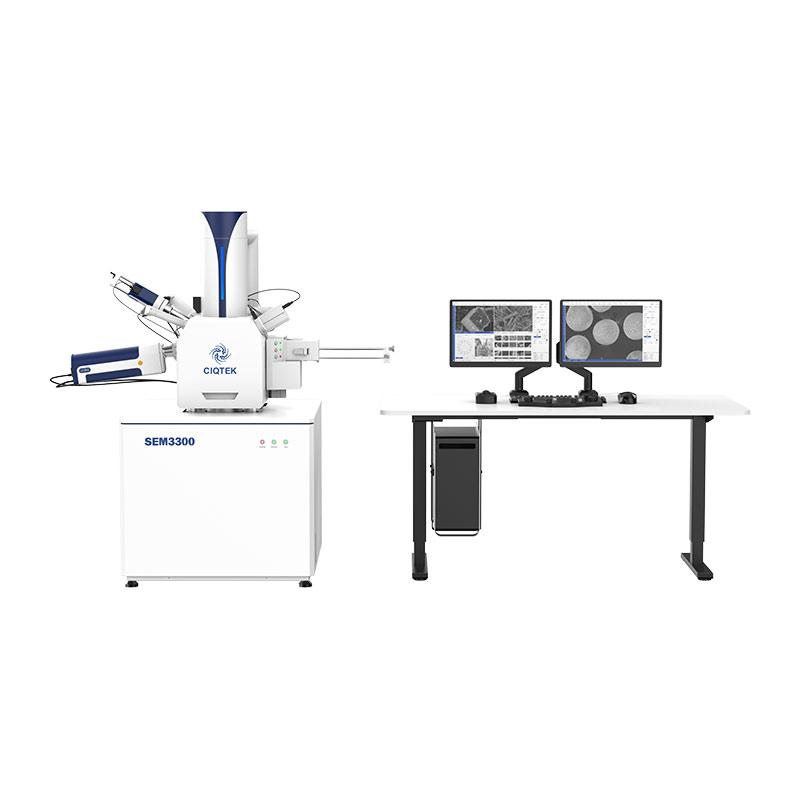

CIQTEK SEM3300 SEM Microscope
Electron Optics Resolution 2.5 nm @ 15 kV, SE
4 nm @ 3 kV, SE
5 nm @ 1 kV, SE
Accelerating Voltage 0.1 kV ~ 30 kV
Magnification (Polaroid) 1 x ~ 300,000 x
Specimen Chamber Low Vacuum None
Camera Optical Navigation
Chamber Monitoring
Stage Type 5-Axis Vacuum Compatible Motorized
XY Range 125 mm
Z Range 50 mm
T Range - 10° ~ 90°
R Range 360°
SEM Detectors Standard In-lens Electron Detector (Inlens)
Everhart-Thornley Detector (ETD)
Optional Retractable Back-Scattered Electron Detector (BSED)
Energy Dispersive Spectrometer (EDS)
Electron Backscattered Diffraction Pattern (EBSD)
Optional Specimen Exchange Loadlock
Trackball & Knob Control Panel
User Interface Operating System Windows
Navigation Optical Navigation, Gesture Quick Navigation, Trackball (Optional)
Automatic Functions Auto Brightness & Contrast, Auto Focus, Automatic Stigmator
Hot Tags : sell scanning electron microscopes sem manufacturers sem microscope cost types of scanning electron microscope buy scanning electron microscope sem technology sem se bse magnification of sem
Leave A Message
Please feel free to contact us for more details, request a quote or book an online demo! We will reply you as soon as we can.
Subject : Tungsten Filament SEM | SEM3300
Submit
Related Products
fib sem microscopy
FIB-SEM | DB550

Field Emission Scanning Electron Microscope (FE-SEM) with Focused Ion Beam (FIB) Columns   The CIQTEK DB500 Focused Ion Beam Scanning Electron Microscope (FIB-SEM) adopts “SuperTunnel” electron optics technology, low aberration, and non-magnetic objective design with low voltage and high-resolution capability to ensure the nano-scale analysis. The ion column facilitates a Ga+ liquid metal ion source with a highly stable and high-quality ion beam for nanofabrication.   FIB-SEM DB500 has an integrated nano-manipulator, gas injection system, electrical anti-contamination mechanism for the objective lens, and 24 expansion ports, making it an all-around nano-analysis and fabrication platform with comprehensive configurations and expandability.

Learn More
sem electron microscope
High Speed SEM | HEM6000

High-speed scanning electron microscope for cross-scale imaging of large-volume specimens   CIQTEK HEM6000 facilities technologies such as the high-brightness large-beam current electron gun, high-speed electron beam deflection system, high-voltage sample stage deceleration, dynamic optical axis, and immersion electromagnetic & electrostatic combo objective lens to achieve high-speed image acquisition whilst ensuring nano-scale resolution. The automated operation process is designed for applications such as a more efficient and smarter large-area high-resolution imaging workflow. The imaging speed can reach more than 5 times faster than a conventional field emission scanning electron microscope (fesem).

Learn More
fesem edx
Ultra-high Res FESEM | SEM5000X

Ultra-high Resolution Field Emission Scanning Electron Microscopy (FESEM): 0.6 nm@15 kV and 1.0 nm@1 kV   The CIQTEK SEM5000X ultra-high resolution FESEM utilizes the upgraded column engineering process, “SuperTunnel” technology, and high-resolution objective lens design to improve low-voltage imaging resolution. The FESEM SEM5000X specimen chamber ports extend to 16, and the specimen exchange load-lock supports up to 8-inch wafer size (maximum diameter 208 mm), significantly expanding the applications. The advanced scanning modes and enhanced automated functions bring stronger performance and an even more optimized experience.

Learn More
sem microscope price

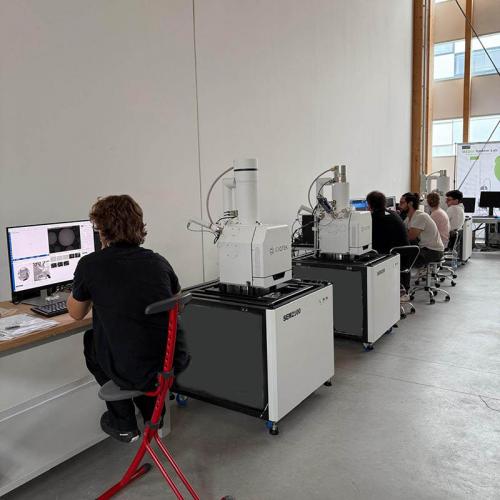

CIQTEK SEM Microscopes Customer Stories
