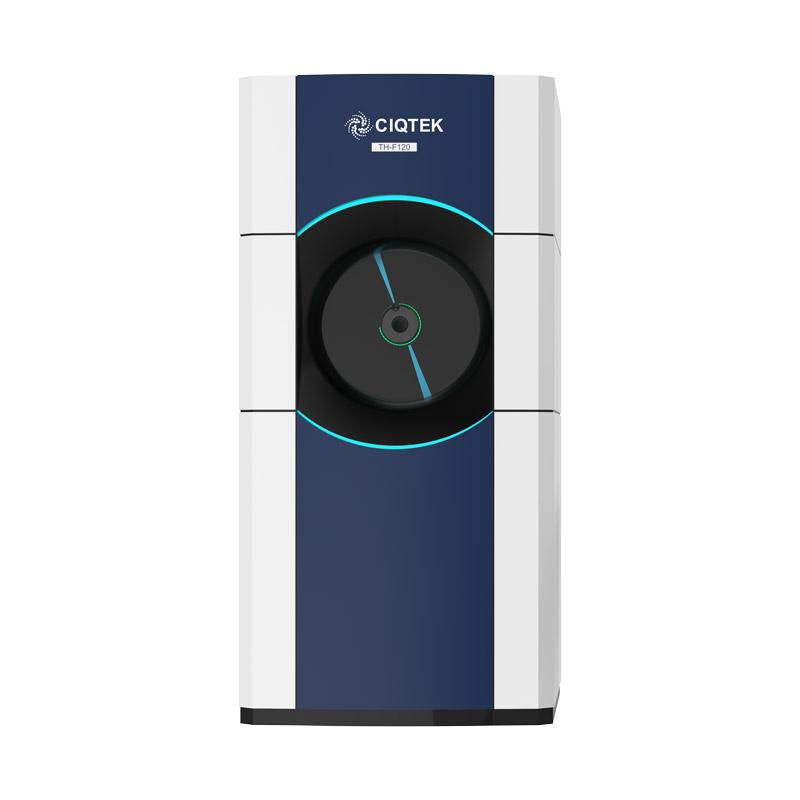

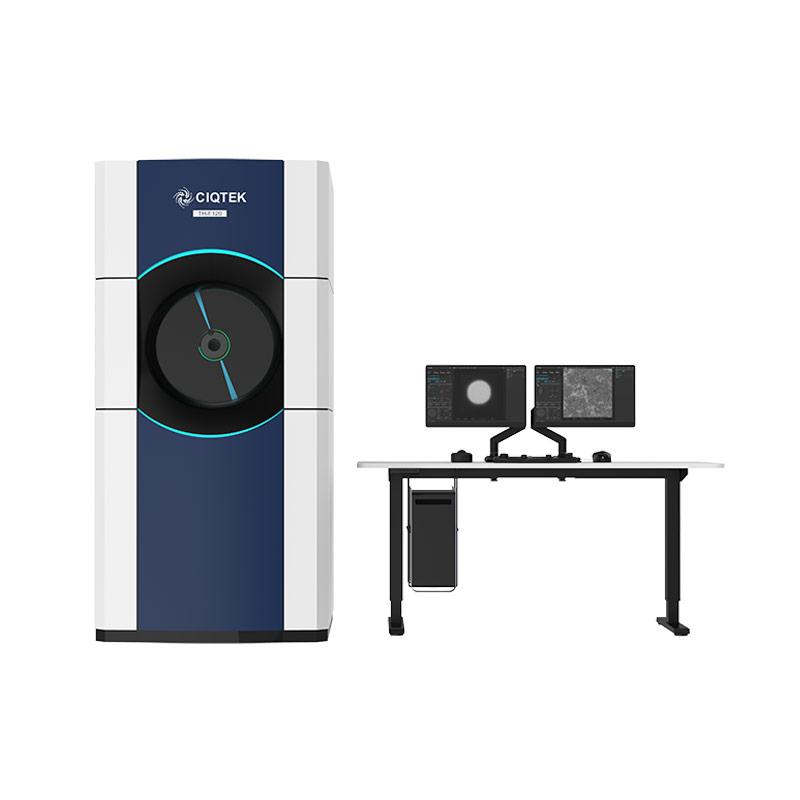

Field Emission TEM | TH-F120

120kV Field Emission Transmission Electron Microscope (TEM)

1. Divided Workspaces: Users operate TEM in a divided room with comfort reducing environmental interference to TEM.

2. High Operational Efficiency: Designated software integrates highly automated processes, allowing efficient TEM interaction with real-time monitoring.

3. Upgraded Operational Experience: Equipped with a field emission electron gun with a highly automated system.

4. High Expandability: There are sufficient interfaces reserved for users to upgrade to a higher configuration, which meets diverse application requirements.

Inquire Now

Schottky Field Emission Gun
High-pixel CMOS Camera
Parallel / Convergent Beam Automatic Switching System

Four-axis High Precision Stage
Symmetric Constant Power Objective Lens
Highly Integrated Software

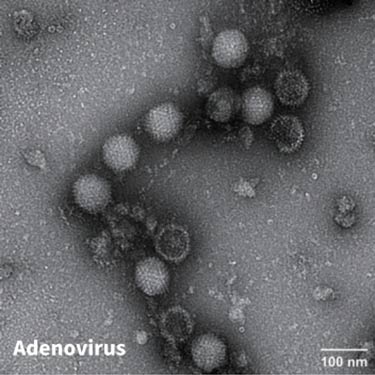

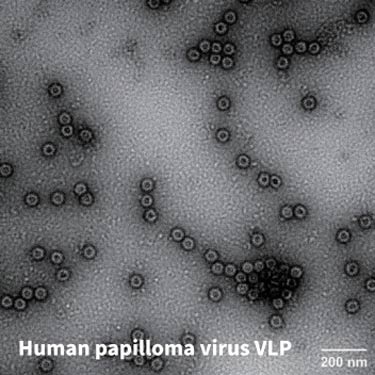

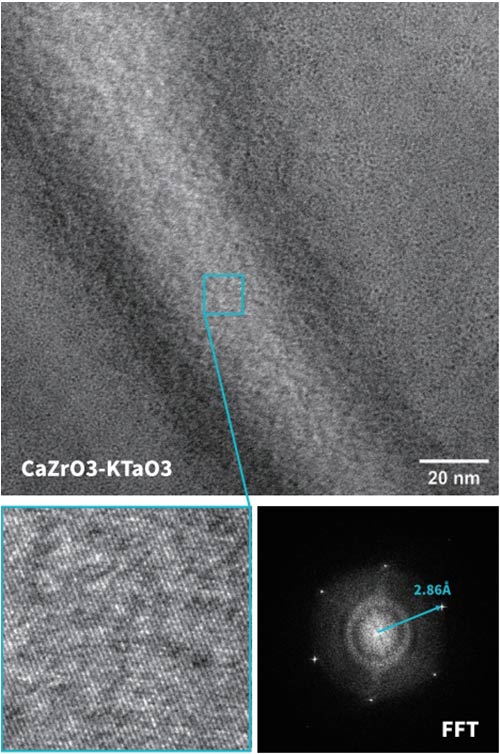

CIQTEK TEM Microscope TH-F120 Image Gallery

CIQTEK TH-F120 TEM Microscope Specifications
	High-contrast Version	High-resolution Version
Acceleration Voltage	10 kV ~120 kV	10 kV ~120 kV
Information limit	0.20 nm	0.14 nm
Point Resolution	0.36 nm	0.3 nm
Magnification Range	10 ~1,200,000 x	10 ~ 1,500,000 x
Camera Sensor Size	4096 x 4096 (pixels)	4096 x 4096 (pixels)
Rotation Angle of Stage	-90° ~ +90°	-70° ~ +70°
Optional Equipment	EDS, STEM, Side-line Camera, EELS, Cryo-box
