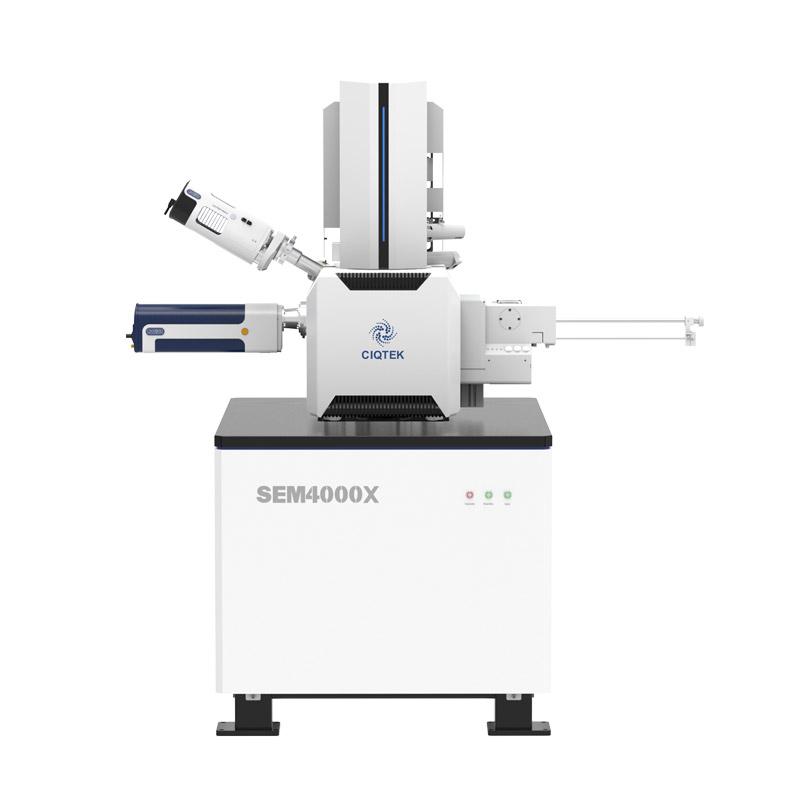

FESEM | SEM4000X

Stable, Versatile, Flexible, and Efficient

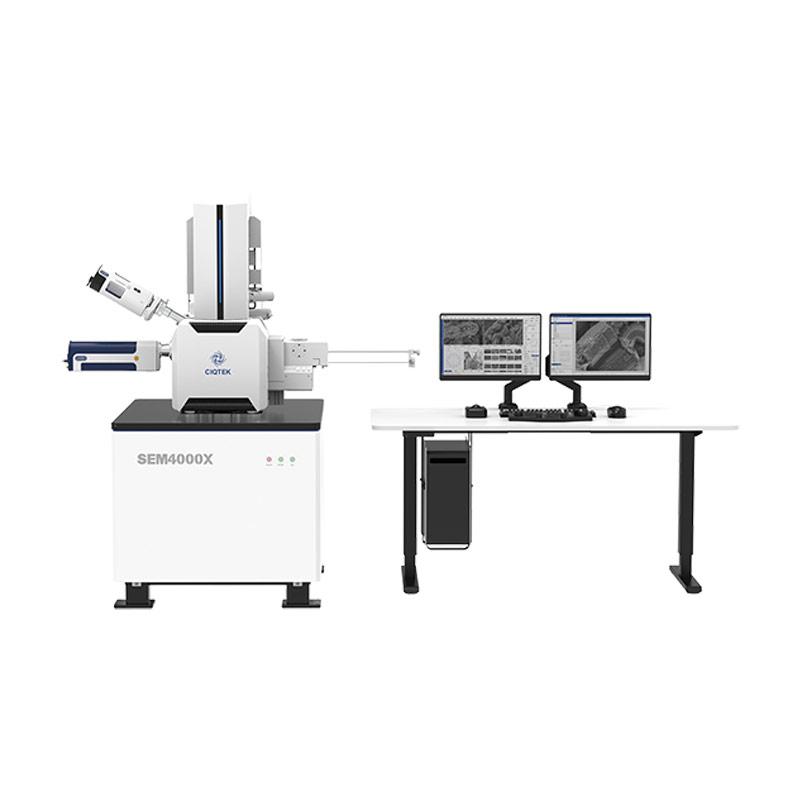

The CIQTEK SEM4000X is a stable, versatile, flexible, and efficient field emission scanning electron microscope (FE-SEM). It achieves a resolution of 1.9nm@1.0kV, and easily tackles high-resolution imaging challenges for various types of samples. It can be upgraded with an ultra-beam deceleration mode to enhance low-voltage resolution even further.

The microscope utilizes multi-detector technology, with an in-column electron detector (UD) capable of detecting SE and BSE signals while providing high-resolution performance. The chamber-mounted electron detector (LD) incorporates crystal scintillator and photomultiplier tubes, offering higher sensitivity and efficiency, resulting in stereoscopic images with excellent quality. The graphic user interface is user-friendly, featuring automation functions such as automatic brightness & contrast, auto-focus, auto stigmator, and automatic alignment, allowing for rapid capture of ultra-high resolution images.

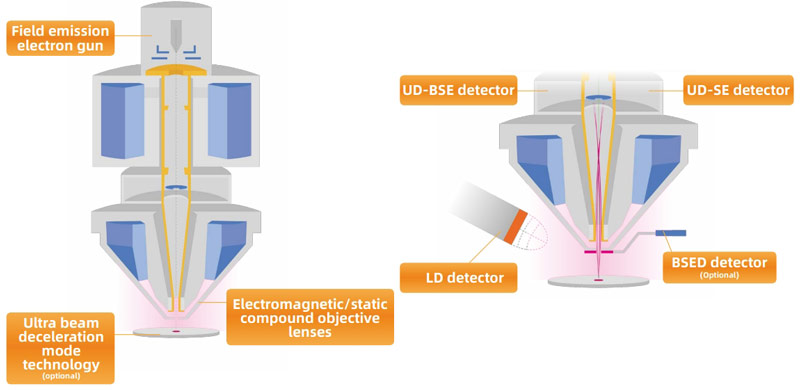

Electron Optics



sem Electron Optics



Particle & Pore Analysis Software (Particle) *Optional

SEM Particle & Pore Analysis Software (Particle)

The CIQTEK SEM Microscope software employs various target detection and segmentation algorithms, suitable for different types of particle and pore samples. it enables quantitative analysis of particle and pore statistics and can be applied in fields such as materials science, geology, and environmental science.


Image Post-processing Software *Optional

SEM Microscope Image Post-processing Software

Perform online or offline image post-processing on images captured by electron microscopes and integrate commonly used EM image processing functions, convenient measurement, and annotation tools.


Auto Measure *Optional

SEM Microscope software Auto Measure

Automatic recognition of line width edges, resulting in more accurate measurements and higher consistency. Support multiple edge detection modes, such as Line, Space, Pitch, etc. Compatible with multiple image formats and equipped with various commonly used image post-processing functions. The software is easy to use, efficient, and accurate.


Software Development Kit (SDK) *Optional

SEM Microscope Software Development Kit (SDK)

Provide a set of interfaces for controlling the SEM microscope, including image acquisition, operating condition settings, power on/off, stage control, etc. Concise interface definitions allow for the rapid development of specific electron microscope operation scripts and software, enabling automated tracking of regions of interest, industrial automation data acquisition, image drift correction, and other functions. Can be used for software development in specialized areas such as diatom analysis, steel impurity inspection, cleanliness analysis, raw material control, etc.


AutoMap *Optional

FESEM Microscope software Auto Measure



CIQTEK SEM4000X FESEM Microscope Specifications
Electron Optics Resolution 0.9 nm@ 30 kV, SE
1.2 nm@15 kV, SE
1.9 nm@1 kV, SE
1.5 nm@1 kV (Ultra beam deceleration)
1 nm@15 kV (Ultra beam deceleration)
Acceleration Voltage 0.2 kV ~ 30 kV
Magnification (Polaroid) 1 ~ 1,000,000 x
Electron Gun Type Schottky Field Emission Electron Gun
Specimen Chamber Camera Dual Cameras (Optical navigation + chamber monitoring)
Stage Range

X: 110 mm

Y: 110 mm

Z: 50 mm

T: -10°~ +70°

R: 360°

SEM Detectors and Extensions Standard

In-lens Electron Detector: UD-BSE/UD-SE

Everhart-Thornley Detector: LD

Optional

Backscattered Electron Detector (BSED)

Retractable Scanning Transmission Electron Microscopy Detector (STEM)

Low Vacuum Detector (LVD)

Energy Dispersive Spectrometer (EDS / EDX)

Electron Backscatter Diffraction Pattern (EBSD)

Specimen Exchange Loadlock (4 inch /8 inch)

Trackball & Knob Control Panel

Ultra Beam Deceleration Mode Technology

User Interface Language English
OS Windows
Navigation Optical Navigation, Gesture Quick Navigation, Trackball (optional)
Automatic Functions Auto Brightness & Contrast, Auto Focus, Auto Stigmator
