EPR Spectroscopy Accessories: Enhancing EPR Analysis

Electron paramagnetic resonance (EPR) or electron spin resonance (ESR) spectroscopy is an invaluable tool for investigating paramagnetic substances' electronic structure and dynamic behaviors. With widespread applications in chemistry, physics, materials science, and biology, this technique continues to reshape our understanding of the natural world. In this blog post, we will delve into the common EPR spectroscopy accessories, exploring their profound impact on pushing the boundaries of EPR research.

Microwave Resonators:

Microwave resonators are essential components of an EPR spectrometer for precise control and manipulation of electromagnetic fields. They define the experimental conditions and influence key parameters such as sensitivity, spectral resolution, and sample compatibility. Different types of resonators (e.g., cavity resonators, rectangular waveguide resonators, and dielectric resonators) offer unique advantages, depending on the nature of the sample and the required experimental setup.

Cryostats and Cryogenic Systems:

Cryogenic systems play a crucial role in EPR spectroscopy by enabling low-temperature experiments. Cooling samples to cryogenic temperatures reduces thermal noise and stabilizes paramagnetic systems, allowing for enhanced spectroscopic resolution. Liquid helium and liquid nitrogen are commonly used cryogens that cool the sample chamber, resonator, and related components. Additionally, cryostats and cryogenic automation systems enable precise control over the cooling process, facilitating sophisticated experiments.

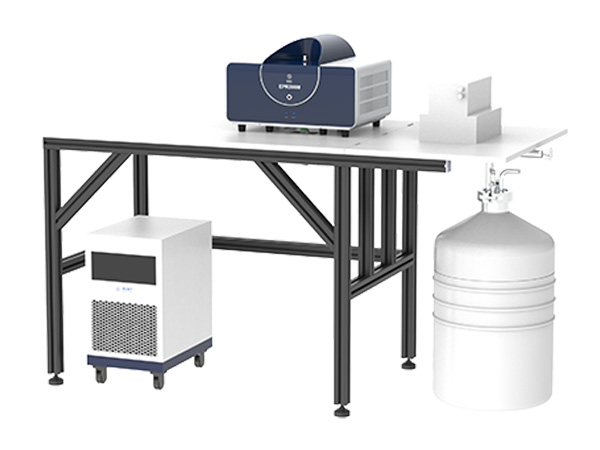

E.g. EPR200M Liquid Nitrogen VT System with Cryostat (100K to 600K)

Variable Temperature Systems:

Studying the temperature dependence of paramagnetic systems is important to understanding their behavior. Variable temperature accessories provide researchers with the ability to study EPR spectra over a wide range of temperatures. These accessories include temperature controllers, cryostats with temperature stages, and ovens that can heat samples to high temperatures. By studying spectral changes at different temperature conditions, scientists can gain insight into the energy landscape and dynamics of paramagnetic systems.

Magnetic Field Accessories:

EPR spectroscopy requires the ability to precisely control magnetic fields. Magnetic field accessories (e.g., superconducting magnets, electromagnets, and magnetic field modulation systems) allow researchers to tailor the applied magnetic field to the specific needs of the experiment. High magnetic fields improve spectral resolution, while magnetic field modulation systems allow for the analysis of dynamic processes such as electron-nuclear spin interactions and electron-electron interactions.

Sample Handling Accessories:

Sample Handling Accessories are designed to ensure efficient and accurate sample handling in EPR experiments. These accessories include sample tubes, holders, and goniometers that allow researchers to accurately position samples within the resonator. Sample handling devices such as rotary and translational tables allow samples to be studied from different angles and orientations, providing valuable information about the anisotropy and orientation of the paramagnetic system.

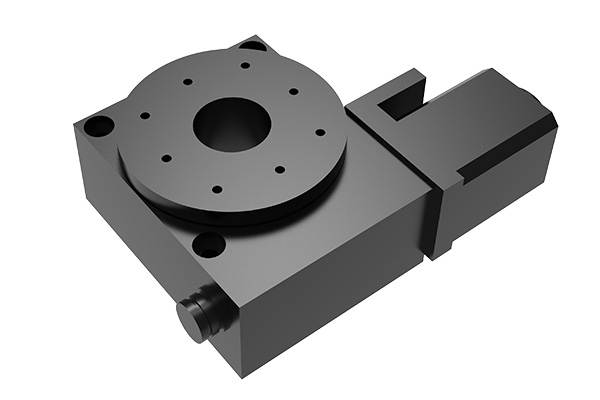

E.g. EPR200M Goniometer

Conclusion:

EPR spectroscopy accessories play an integral role in expanding the capabilities of EPR analysis. Microwave resonators, cryogenic systems, variable temperature systems, magnetic field accessories, and sample handling accessories all contribute to enhancing sensitivity, improving spectral resolution, and enabling a diverse range of experiments. By utilizing these accessories effectively, researchers can unlock deeper insights into the electronic structure, dynamics, and reactivity of paramagnetic systems, impacting fields such as materials science, chemistry, biology, and medicine.

The CIQTEK EPR spectrometers are supplied with a complete range of high-quality accessories including microwave source, sample cells,  in-situ irradiation systems, goniometer, Dewar flask, magnetic field control, resonator, data acquisition and analysis software, temperature control system (cryostats, variable temperature system), etc.
